Description
|
|













RLC-410W Specifications |
||
Camera | Model | RLC-410W (4MP Version) |
Image Sensor | 1/2.7″ CMOS Sensor | |
Effective Pixels | 2560 x 1440(4.0Megapixel) | |
Lens | f=4.0mm F=2.0 | |
Angle of View | Horizontal: 80°, Vertical: 42° | |
Day/Night Mode | Auto Switchover | |
Min. Illumination | 0 Lux (With IR Illuminator) | |
IR Distance | IR Distance 30 Meters(LED: 18pcs/14mil/850nm) | |
Backlight Compensation | Support | |
Noise Reduction | 3D DNR | |
Video | Compression | H.264 |
Resolution | Main Stream: 2560×1440, 2048×1536, 2304×1296; Sub Stream: 640 x 480 |
|
Bitrate | Main Stream: 1024Kbps ~ 8192Kbps, Sub Stream: 64Kbps ~ 512Kbps | |
Frame Rate | Main Stream@15fps, Sub Stream@6fps | |
Audio | Interface | Built-in Microphone |
Network | Interface | One 10M/100Mbps RJ45 |
Network Protocol | HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P | |
Browser Supported | IE, Edge, Chrome, Firefox, Safari | |
OS Supported | PC: Windows, Mac OS; Smart Phone: iOS, Android | |
3rd party software support list | Blue Iris, iSpy, Synology Nas, Qnap Nas | |
Max. User Access | 20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
|
Storage | Built-in Micro SD socket, support motion detect record | |
WiFi | Wireless Standard | IEEE 802.11a/b/g/n |
Operating Frequency | 2.4GHz / 5GHz | |
Wireless Security | WPA-PSK/WPA2-PSK | |
General | Power Supply | 12V 1A Power Adapter |
Power Consumption | <8W | |
Working Environment | -10℃~+55℃(14°F~131°F), 10%~90% | |
Ingress Protection | IP66 | |
Dimensions | Φ67 x 186mm | |
Weight | 425g |

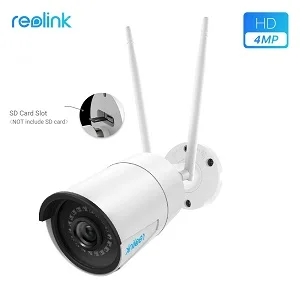

Reolink Surveillance Outdoor Camera WiFi 4MP 2.4G/5G HD IP Cam Wireless Weatherproof Security Cam RLC-410W
